WizLan Balls
Click to send this page to a colleagueSend to a friend
Click to print this pagePrint page

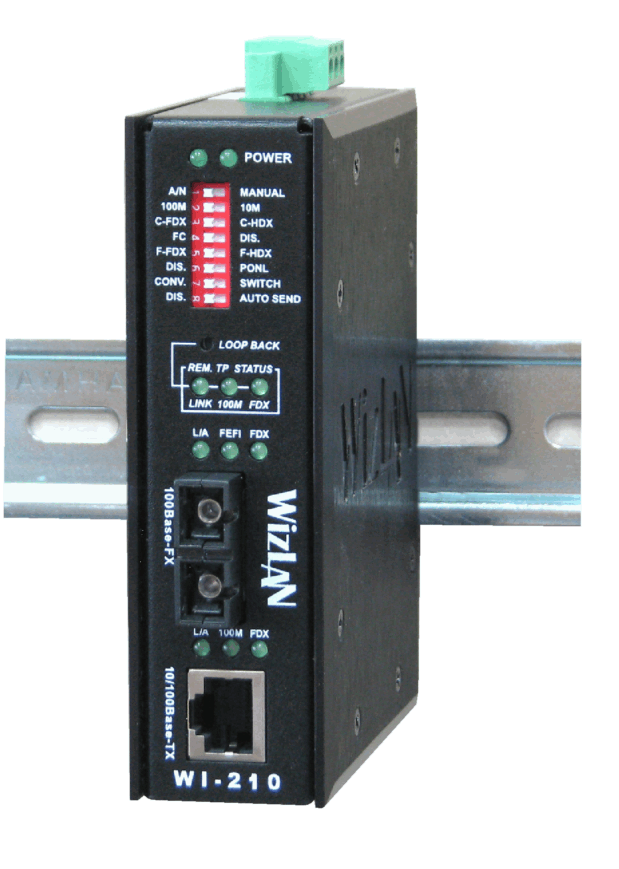

  • Industrial/Outdoor 10/100M F/O Converter
  • Transparent 3R* conversion and/or switch operation modes
  • Enhanced Link Verification features:
    > Propagation Of No Link (PONL)
    > Far end-Fault Indication (FEFI)
    > Loop-back test (LB)
    > Supports TS-1000 remote monitoring standard
    > S
    ends the status to the remote F/O link partner
    > Displays the status of the F/O Remote TP port (RTPSI)
  • Auto MDI, Auto-negotiation, force modes and flow control
  • Front panel DIP switch settings
  • Supports Multi/Single mode for dual and single fibers
  • Available with SFP, SC or ST fiber optic connectors
  • Detailed, highly visible LED status indicators
  • Wide range power input, 9-58VDC or 9-41VAC
  • Operating temperature from -20°C to + 70°C

Related Documents Click to DownloadWI-210 R13.pdf (176Kb)
