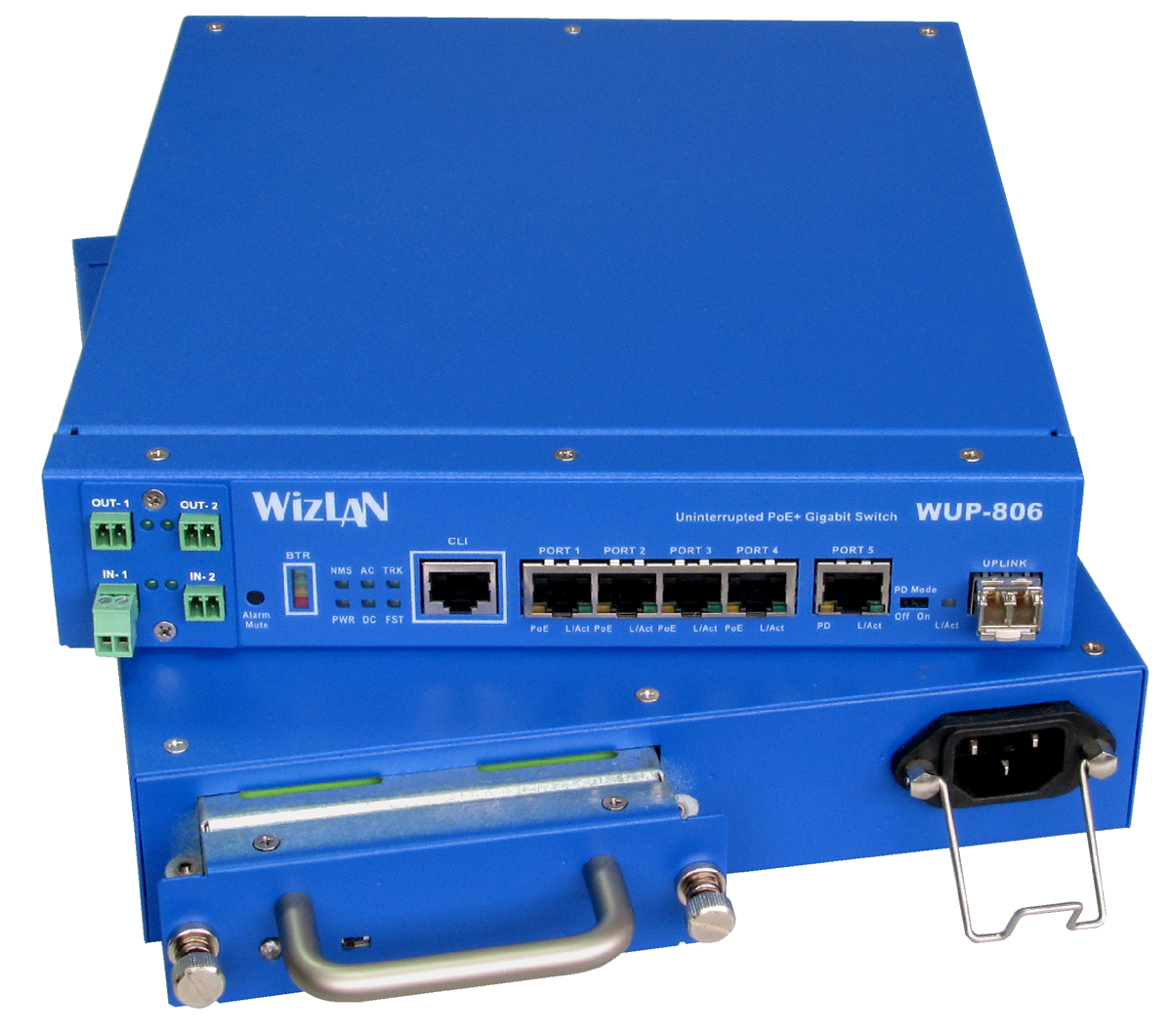

WUP-806New

Uninterrupted, PoE+ Switch, five 10/100/1000Base-T and one 100/1000Base-X SFP, PoE (PSE/PD), battery back-up, Dry contact I/O

  • Uninterrupted fully managed Telco-grade PoE Gigabit switch suitable for high survivability F/O networks and services
  • Internal, hot swappable, battery backup drawer with smart charging and power controller. Provides full network & access operation for 30 minutes upon main power fail (inc. PoE)
  • Fiber optic 100/1000Base-X Gigabit backbone port (SFP) and
    5x 10/100/1000Base-T access ports, four with IEEE802.3at/af PoE/PSE and one PoE/PD support
  • Two isolated “dry contact” sensor inputs and two activation “dry contact” outputs (optional plug-in module), emergency flashlight
  • Advanced features: VLAN (802.1Q and port based), QoS, STP/RSTP, IGMP v3 Snooping, RMON, jumbo and more
  • Network access control via MAC security and optional 802.1X authentication
  • Remote Management via SNMP, Web and Telnet with enhanced access security and HTTPS (optional)
  • Wide range AC operation
  • Desktop/shelf installation (9”,1U)
Related Documents Click to DownloadWUP-806 DS 12.pdf (173Kb)
