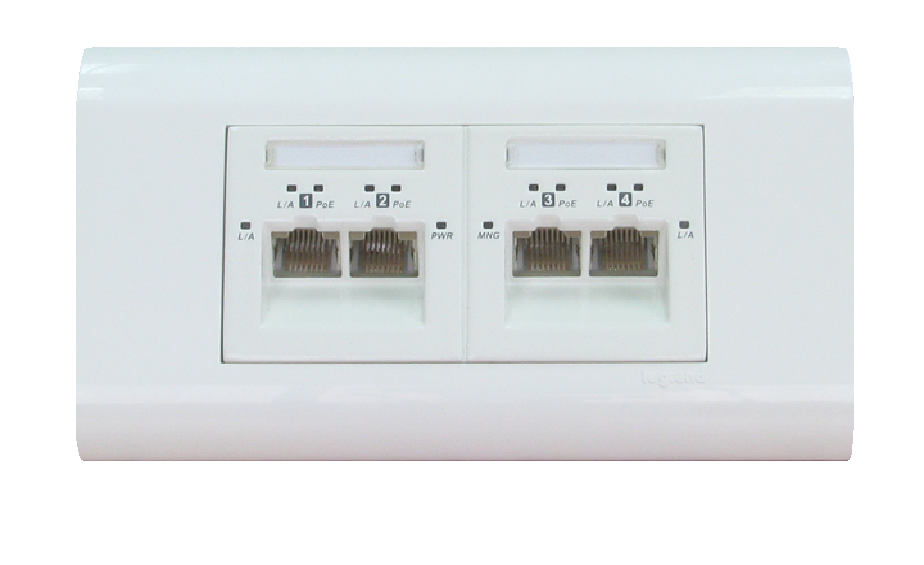

WP-690B

Fully manageable Gigabit cable-duct switch, fits into standard 45x90 in-wall/duct systems, fanless
Four external PoE user’s ports, 10/100/1000M RJ45 A/N auto MDI
Gigabit/100M SFP and 10/100/1000M RJ45 uplink/daisy-chain uplink ports
Power over LAN (PoE) supporting IEEE802.3at/af PDs (PoE+, PoE) on all four RJ45 user’s ports
High power embedded management providing SNMP agent, web (full Java applet) and Telnet
Remote Management via WizLAN’s enhanced Wiz-View/B application, Web browser and Telnet
Highly secured in-band access via IP access list, secure NMS path, passwords and optional HTTPS.
Low voltage operation via compact external power supply, snap-in duct type or in-duct desktop style
Low power consumption with aluminium panel for optimal heat dissipation
