WSD-2/TXO and RXO Cyber Network SecurityNew

F/O UniDirectional Network/Data Diode, NISA Approved

  • Fast Ethernet single-direction transparent converters - Network Diodes for data transfers from/to secured sites
  • Approved by the Israeli National Information Security Authorization (NISA).
  • CIP device, TXO - Transmit only and RXO - Receive only
  • Pure HW unbreakable solution for single-direction data transfer, compatible with standard 100Base-TX and 100Base-FX link partners
  • Suitable for single-direction data streaming and UDP traffic as well as TCP based protocols or raw files transfers operated by any third-party unidirection SW application
  • Local or remote over F/O link in the range of 0-100Km
  • Fully transparent 3R conversion
  • Auto-negotiation, auto MDI and force modes
  • Enhanced Link Verification features:
    > Propagation Of No Link (PONL)
    > Far end-Fault Indication (FEFI)
  • Available for indoor, outdoor and industrial environments
  • Desktop, DIN rail and wall mounting options
  • External wide-range power supply
The WSD-2/TXO and WSD-2/RXO are unique single-direction “Transmit Only” and “Receive Only” full featured Fast Ethernet transparent converters providing 3R (Retiming, Reshaping and Regeneration) conversion between 100Base-TX copper media and 100Base-FX fiber media in compliance with IEEE802.3u standards.

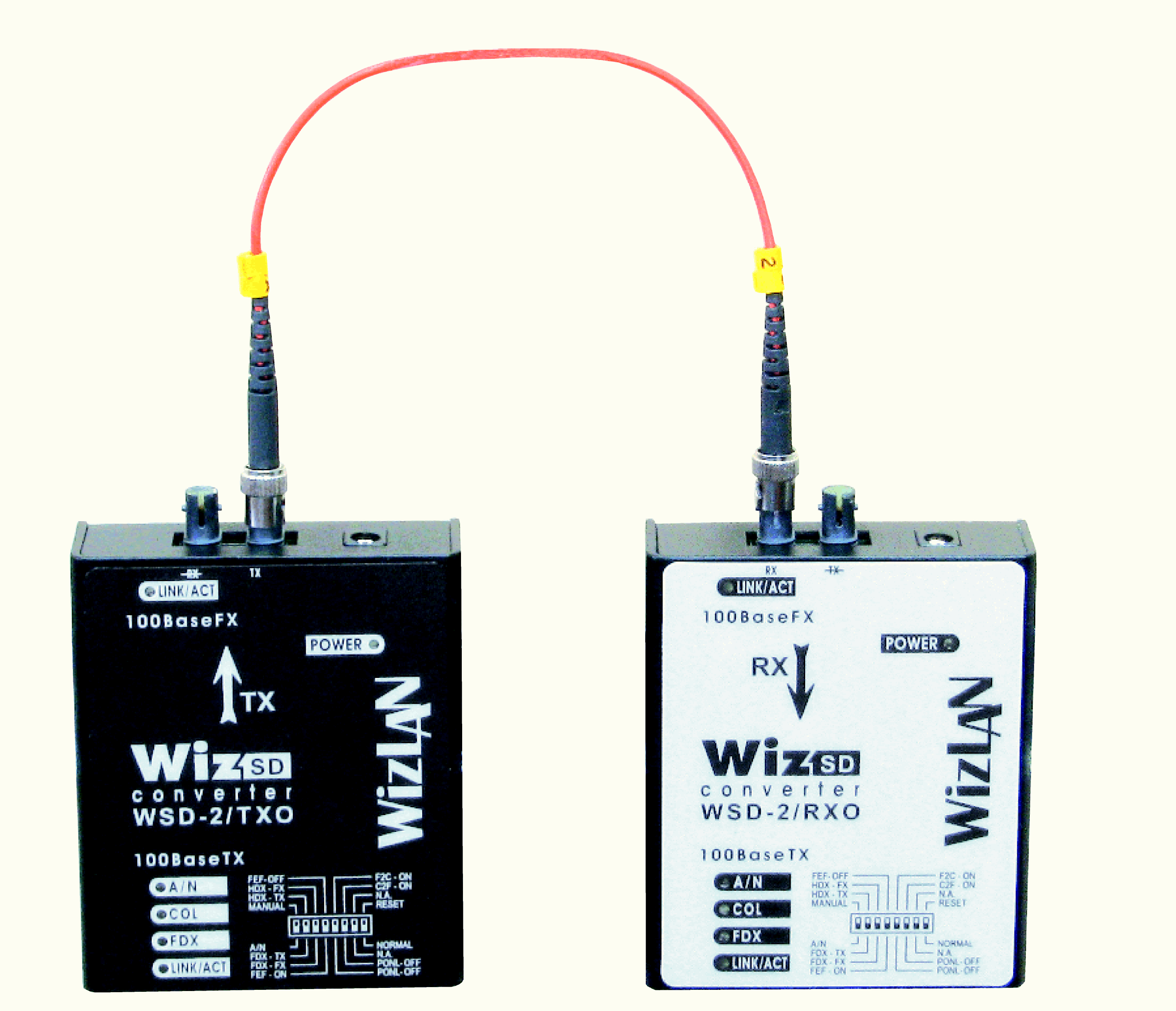

Designed and approved for Critical Infrastructure Protection (CIP) applications, the WSD-2/TXO provides fully secured copper to fiber single-direction data transfer over single or dual fiber connection to a standard 100Base-FX link partner, whereas the WSD-2/RXO provides fully secured fiber to copper single-direction data transfer over dual fiber connection to a standard 100Base-FX link partner. Protection of the two sites is achieved using a pair of WSD-2/TXO and WSD-2/RXO connected back to back over single fiber in the range of (0-100Km).

Using standard bi-directional 100Base-TX connection with their copper link partners, the WSD-2/TXO and WSD-2/RXO unique technology enables single direction transfer over the fiber link respectively. Data transfer in the opposite direction is completely blocked by both the TXO and RXO HW circuitry.



Related Documents Click to DownloadWSD-2 TRXO Data Sheet R1.3 (198Kb)
