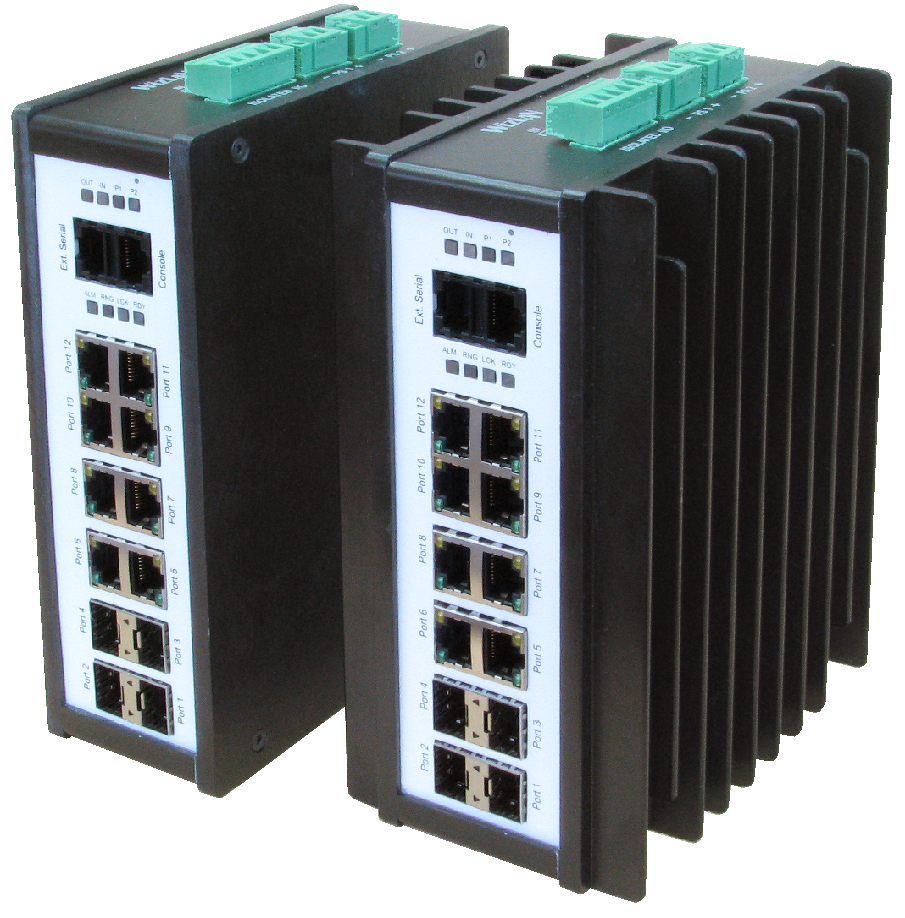

WI-1200New

12 ports Gigabit Industrial/Outdoor Switch, Managed, SFP, PoE, I/O, Serial.

WI-1200 is a super high-end ruggedized Gigabit PoE switch specially designed for industrial and outdoor harsh environment networks.



  • Twelve ports managed rugged Gigabit PoE switch
  • Cyber Security ready - add on SW option
  • Eight 10/100/1000Base-T ports and four SFP (open) ports
  • Four PoE+ (IEEE802.3at/af) and two Ultra PoE+ up-to 60Watt. Total PoE power up-to 240Watt.
  • Isolated dry contact I/O ports, IN and OUT
  • Two isolated serial ports: CLI V.24 (RS232) and Ext. port for RS232/422/485 RTU
  • Two, redundant, power inputs in the range of 24V (18-36 VDC) or 48V (36-60VDC)
  • Operating temperature -40°C to + 75°C, fanless
  • DIN rail aluminum enclosure, IP30 protection
  • Advanced Networking features: Jumbo frames;IPv4/IPv6 multicast; QoS/CoS; VLAN IEEE802.1Q and port based; STP, RSTP and MSTP; IGMP snooping; IEEE802.1x; Radius and TACACS+; MAC security
  • Management: HTTP/HTTPS; SNMPv1/v2/v3;
    Telnet/SSHv2; SNMP traps and Syslog; RMON groups 1,
    2,3,9; Access list; Configuration upload and download; DHCP Client or static IP



Related Documents Click to DownloadWI-1200 R34.pdf (263Kb)
