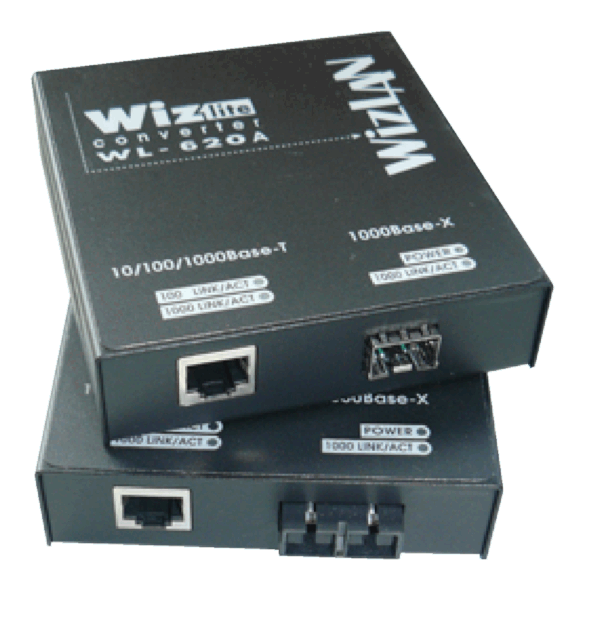

Triple speed Gigabit converter 10/100/1000Base-T to 1000Base-X

  • 10/100/1000Base-T to 1000Base-SX/LX A/N triple speed advanced converter
  • Complies with IEEE standards 802.3/802.3u,
    802.3ab and 802.3z
  • Supports jumbo frames up-to 9K bytes
  • Supports PONL (Propagation Of No Link)
  • Green, significant power savings link down
  • Store-and-Forwards or fast Cut-Through modes
  • Auto-negotiation, auto MDI/MDIX and polarity correction
  • Copper cable up to 100m on Cat5, 5e or 6 TP cable
  • SFP and Fix fiber optic interfaces (SC or LC)
  • Multimedia fiber: up to 220/550m (62.5/50m MMF) and special version for 2km (SC or LC connectors)
  • Singlemode fiber: dual fiber up to 70km, single fiber up to 20km and CWDM up to 80km (SC or LC connector)
  • Highly visible LED indicators
  • External universal power adaptor (EPS)
Related Documents Click to DownloadWL-620B DS 01.pdf (273Kb)
