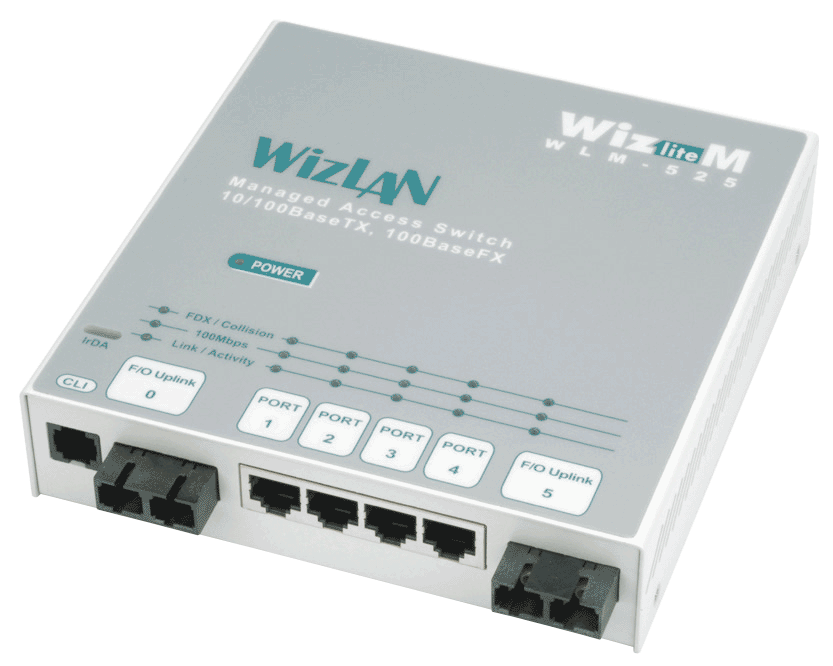

6 Port Fully Managed Access Switch 4x 10/100BaseTX and 100BaseFX


  • 6 ports fully managed high-end switch. Specially designed for F/O Daisy-Chain applications
  • Four 10/100M RJ45, A/N or manual, auto crossover
  • 2 F/O uplink ports supporting multimode and singlemode (dual and single fibers) with variety of F/O connectors.
  • PoE model supporting IEEE802.3af or Cisco PDs
  • Available in Fiber protected model
  • Enhanced switching functionalities including 802.1Q VLAN, Quality of Service (QoS), Rate limit, Flow control, FEF, RMON and more
  • Embedded management agent with secured in-band connection supporting SNMP, Telnet and Web
  • Manageable via WizLAN's enhanced WIZ-View/A EMS application, Telnet (IP) and Web
  • Desktop and wall mounting with Built-in wide range power supply

The WLM-525 is a fully managed high-end access switch used in Fiber Optic Daisy-Chain IP applications such as traffic/highway/railway control, surveillance and security systems, service distribution etc.. Based on state-of-the-art technology, industrial grade components and compact design, the WLM-525 sets new standards for daisy-chain network environment.

The WLM-525 is available in two models: PoE model providing four Power Source Equipment (PSE) ports for power over Ethernet supporting IEEE802.3af or Cisco PDs, and Standard model. Both models are equipped with internal wide-range power supplies (IPS). Supporting 64 802.1Q VLANs, quality of service (QoS) with four traffic classes, rate limit, RMON among other advanced features, makes the WLM-525 the preferable access switch in managed fiber-optic daisy-chain networks capable of providing advanced data and multimedia services such as VoIP and video.

Related Documents Click to DownloadWLM 525 Data Sheet (233Kb)
