5 Port Managed Access Switch 10/100BaseTX to 100BaseFX


  • 5 ports fully managed high-end switch
  • Four 10/100M RJ45, A/N or manual, auto crossover
  • F/O uplink port supporting multimode and singlemode (dual and single fibers) with variety of F/O connectors
  • PoE version supporting IEEE802.3af and CISCO PDs
  • Available in Fiber protected version
  • Enhanced switching functionalities including 802.1Q VLAN, Quality of Service (QoS), Rate limit, Flow
    control, FEF, RMON and more
  • Embedded management agent with secured in-band connection supporting SNMP, Telnet and Web
  • Manageable via WizLAN's enhanced WIZ-View/A EMS application, Telnet and Web
  • Desktop and wall mounting with built-in or external wide range power supply

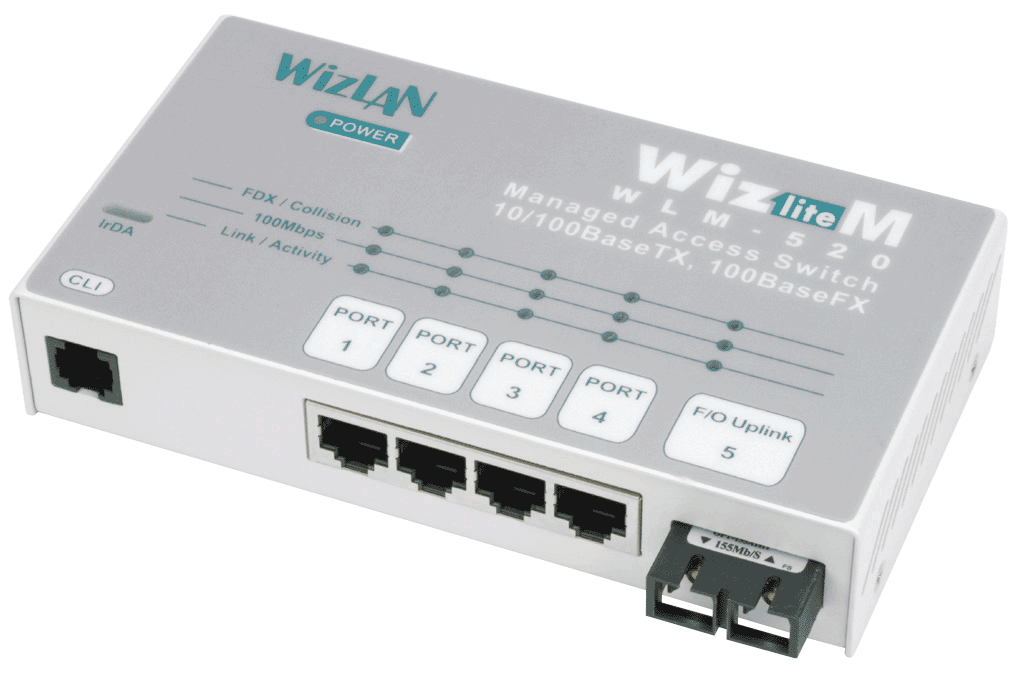

The WLM-520 is a fully manageable high-end access switch used in Fiber to the Home/Office (FTTH/O) networks and remote workgroup applications. Based on state-of-the-art technology, industrial grade components and compact design, the WLM-520 sets new standards for F/O distributed network environments.

The WLM-520 is available in four versions: PoE version providing four PSE ports for power over Ethernet supporting IEEE802.3af or CISCO PDs, Fiber Protected (FP) version that protects the incoming fiber and power jack, keeping only the RJ-45 ports exposed for user's access and Standard versions equipped with either internal (IPS) or external (EPS) power supply. The PoE version includes internal universal power supply.

Related Documents Click to DownloadWLM-520 Data Sheet (250Kb)
