Enhanced Link Verification functions: Far End Fault (FEF) detection Propagation of no link (PONL), configurable to: bi-directional, Fiber to Copper, Copper to Fiber
F/O port supporting Multimode, Singlemode or Single fiber with a variety of F/O connectors
STP/UTP cabling support
Enhanced LED diagnostics, eight indications
Easy setup via DIP switches
Desk-top or direct wall mounting
Available for indoor, outdoor or industrial environment
Optional version for F/O protected mounting (/FP)
External wide-range switching power adaptor

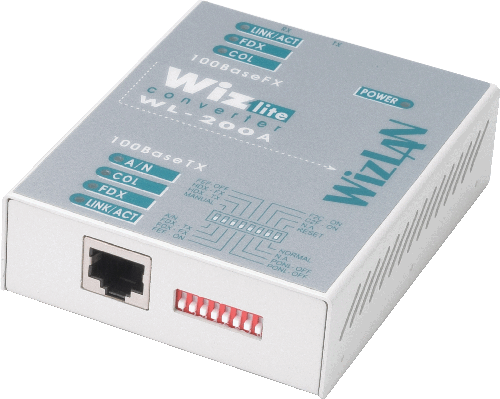

The WL-200A is a full feature standalone Fast Ethernet converter providing transparent conversion between 100BaseT copper media (RJ-45) and 100BaseFX fiber media in compliance with IEEE 802.3u standards. The WL-200A is available for indoor, outdoor (/ETR) and industrial (/IND) installations. The converter supports Auto-negotiation (A/N) or manual selection of FDX or HDX mode on the TX and FX ports, as well as auto MDI/MDI-X crossover. The device configuration is done via 8 position DIP switches located at the front of the unit.
The WL-200A is equipped with enhanced link verification features, FEF (enable/disable) and single/bi-directional PONL that provide plug & play installation, operation and maintenance as well as link management capabilities. The FX port is available with multimode (MM) SC, ST, MT-RJ or VF-45 connectors, single mode (SM) SC or LC connectors for distances of up to 100Km. Single fiber (SF) interfaces are available upon request. Eight high visibility LED indicators provide extensive status display and diagnostics.
