Triple Port Switch with Multimedia Priority support 2x 10/100BaseT and 100BaseFX (unmanaged)
Triple port switch, ideal Residential Access Unit (RAU) for L2H and FTTX advanced services such as VOIP etc.
Supports port based priority for multimedia applications
Link verification function: FEF
100BaseFX uplink and two 10/100BaseT RJ-45 ports
10/100M, HDX/FDX auto-negotiation/manual modes
MM up to 6Km; SM up to 100Km; SF up to 50Km
Compact size desktop and wall mount converter
Unique version for F/O protected mounting
Enhanced LED indicators

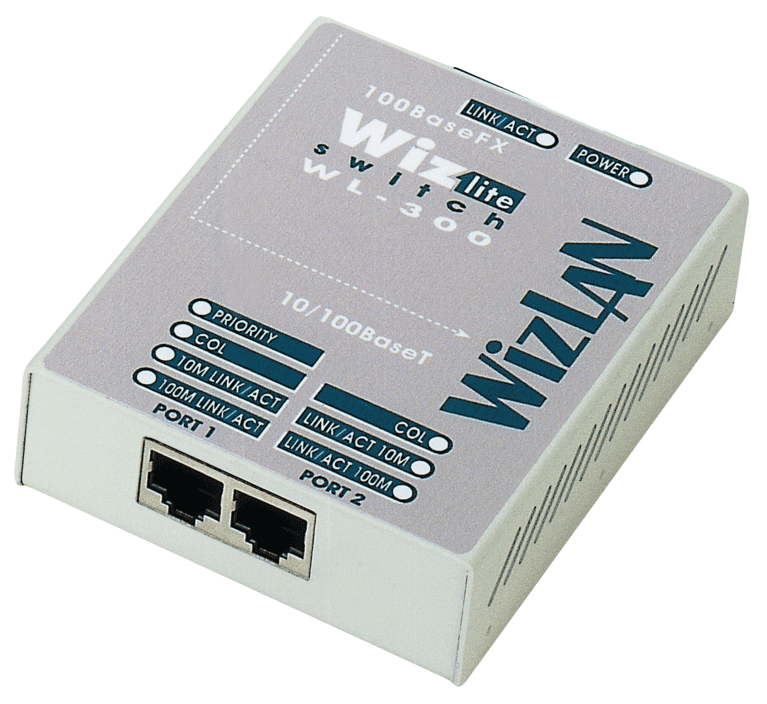

The WL-300 is a triple port standalone switch providing one 100BaseFX uplink port and two 10/100BaseT RJ-45 ports in compliance with IEEE 802.3 standards.
The WL-300 was specially designed as a Residential Access Unit for L2H and FTTX advanced services. The switch supports port base priority (jumper selectable) that opens a high priority path between the F/O uplink and Port #1, providing QOS for mission critical applications such as VOIP (IP telephony), video etc., while maintaining regular priority with data port #2.
