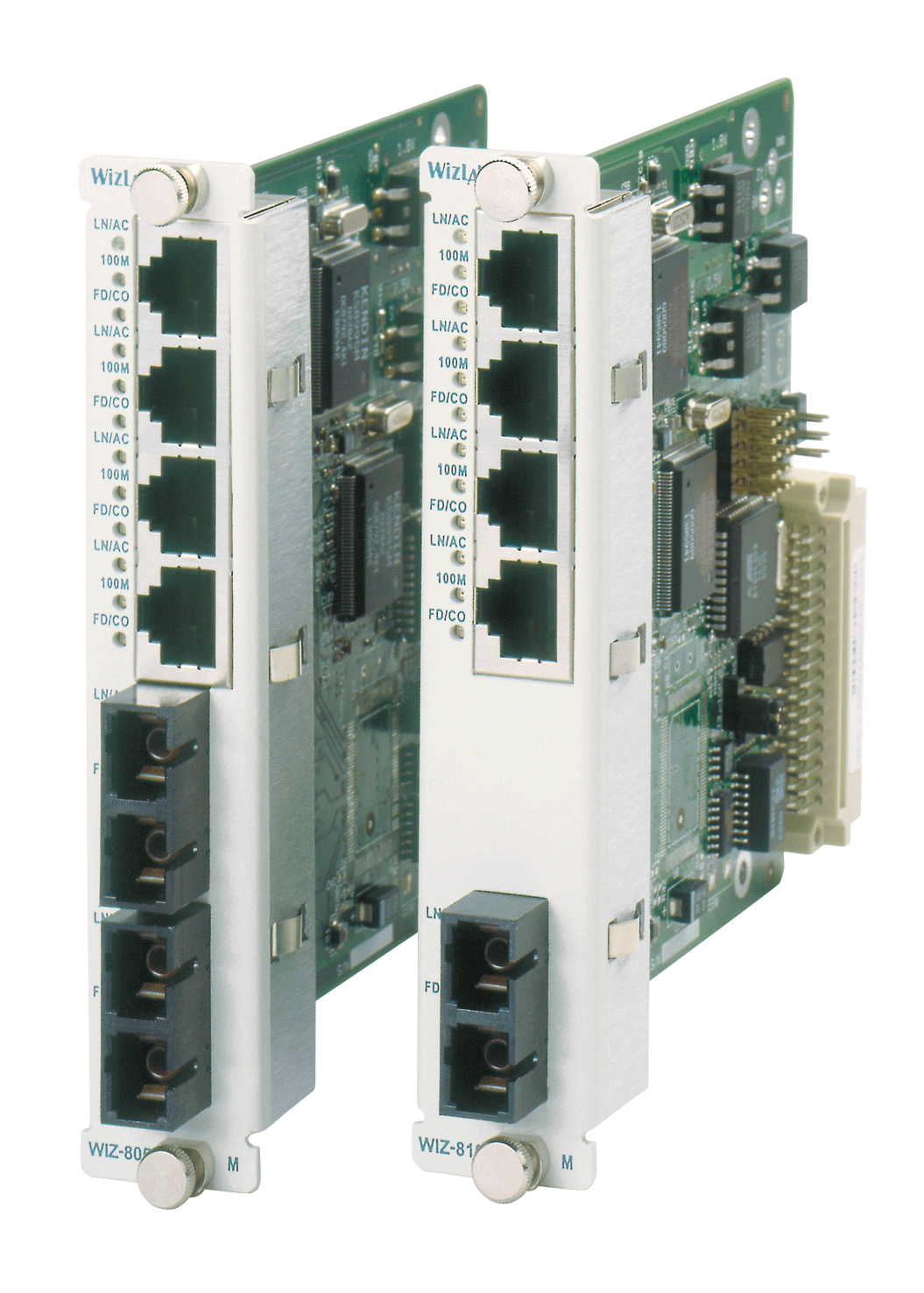

WIZ-805Limited Stock

6 Port Manageable Switch module 2x 100BaseFX and 4x 10/100BaseTX

  • Used in F/O daisy-chain and star topologies
  • Enhanced features and SNMP management capabilities
  • MM and SM, DF, SF and CWDM F/O interfaces
  • Available with SC, ST, MT-RJ, VF-45 or LC connectors
  • 802.1Q VLAN for identification and service isolation with Tag insertion and removal
  • Individual and broadcast VLAN IDs
  • Rate-limit, flow-control, jumbo frames support
  • A/N and manual modes (speed, duplex), FEF
  • Auto MDI/MDI-X crossover
  • Secured in-band management connection
  • Hot-swappable slot-independent slide-in modules
  • Available for Extended Temperature Range (ETR)

WizLAN’s WIZ-805 and WIZ-810 switches provide a fully manageable switching solution for advanced daisy-chain and star topology fiber optic networks in compliance with IEEE 802.3 standards.

The WIZ-805 provides two 100BaseFX uplink ports and four 10/100BaseTX “drop” ports. It is specifically designed for daisy-chain F/O networks running advanced IP applications such as traffic control, security and surveillance systems.

Related Documents Click to DownloadWIZ-805 Data Sheet (205Kb)
