Redundant 10/100BaseT to 100BaseFX fully manageable enhanced converter

  • 10/100Base-TX to 100Base-FX fully redundant converter
  • Dual copper, dual fiber any-to-any redundancy
  • Fast redundancy switching time
  • Full SNMP management (and manual setup)
  • MM up to 6Km; SM up to 100Km; Single Fiber up to 50Km
  • Far-end-Fault (FEF) detection (enable/disable)
  • Power Failure Notification (PFN) - optional
  • Rate-limit, flow-control and jumbo frames support
  • In-band management support
  • Auto MDI/MDI-X crossover
  • Hot-swappable slot-independent slide-in module

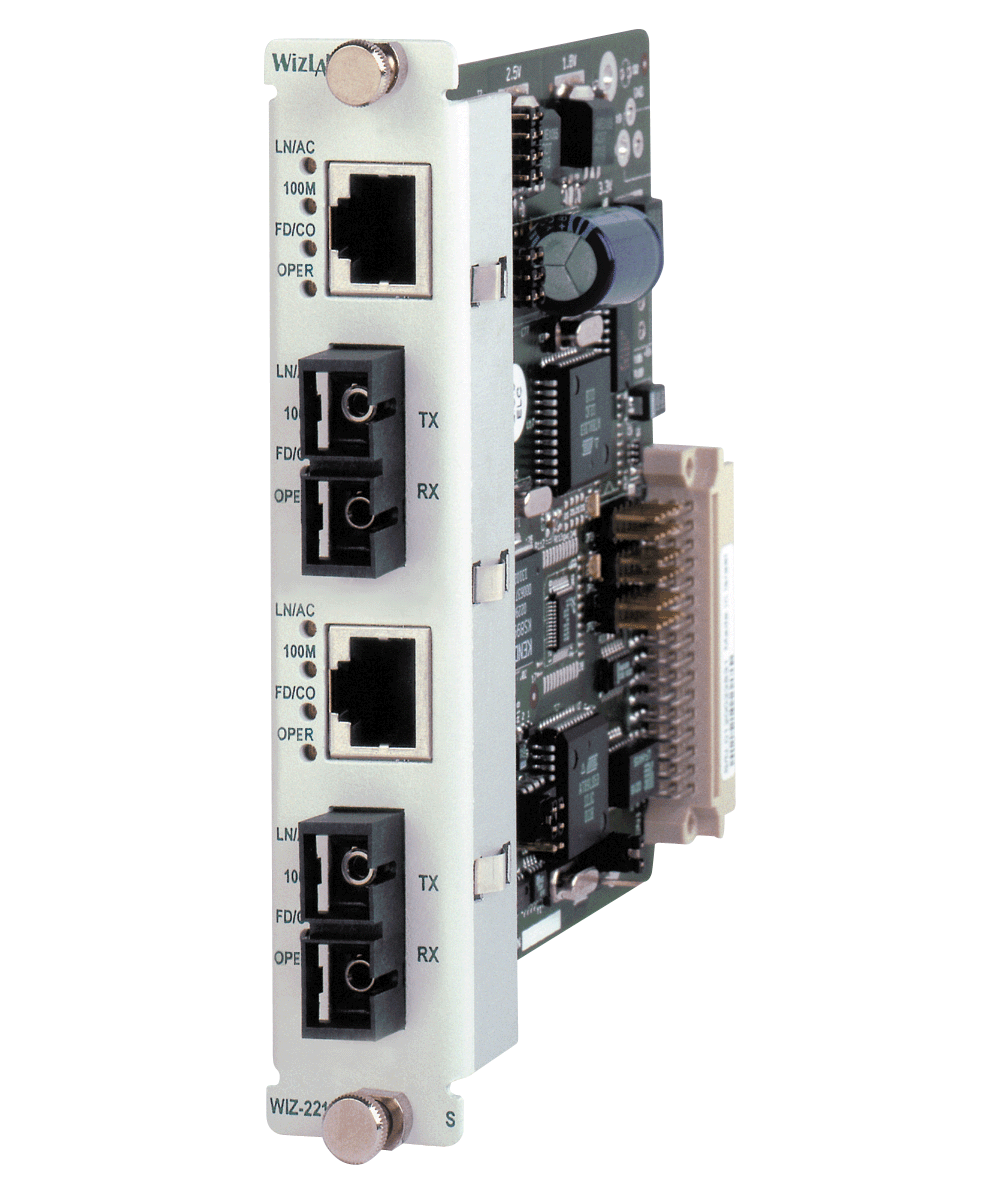

WIZ-221 slide-in module provides fully redundant copper to fiber media conversion in compliance with IEEE 802.3 Ethernet standards.

Safeguarding mission critical fiber optic links.WIZ-221 is the ideal tool for network managers concerned with network availability, session integrity and uptime.

Related Documents Click to DownloadWIZ-221 Data Sheet (123Kb)
